KT-type Lay-in Series

System Description

Lay-in series is the most simple and traditional ceiling for interior decoration, widely used in offices, shopping arcade, hospitals, schools, restaurants, banks and hotels.


Lay-in series is supported by Tee grid suspension system consist of 3000mm main tee, 1200mm and 600mm cross tee suspended by hanger wire from soffit, lay on the ceiling panel on the leveled ceiling frame to complete the installation. Other E/M services should be self-supported. It is easy for installation and disassembly.


Wellbone® Suspension frame is made of galvanized steel, the lay-in ceiling is made of aluminum. Material can switch to harder alloy if necessary. Aluminum is light, not easy for oxidation which suitable for area with high humidity. Panel is finished with powder coating, it is one of the best environmental friendly paint, coating thickness can reach 60 to 80 microns, with the best sealing performance, rich and colorful texture effects. It can also switch to fluorocarbon finish if necessary.


The Lay-in ceiling is normally matte white, smooth and easy to clean. Panel with perforated can help in good ventilation, backing with sound absorption tissue can result acoustic function. Wellbone® also can provide different option in color for the choice of your designer to create the ideal working and living space.

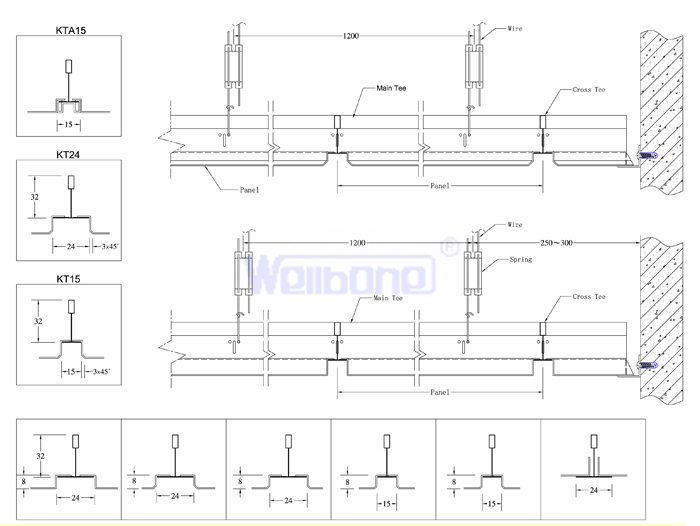

Technical Drawings
